Elevate your retail or hospitality environment with Dynamic Closures' Dynasty 9100 model. These premium security solutions offer sliding, stacking, and hinged bi-fold doors, eliminating the need for floor tracks. Experience a seamless, unobstructed floor, enhancing both safety and aesthetics.
Key Benefits:
- Custom-Made Excellence: Each aluminium-framed, glazed panel is crafted in Australia, tailored to your site's specific requirements. This ensures a perfect fit and finish, reflecting the quality your brand deserves.
- Effortless Operation: The overhead track system, combined with an auto-retractable shoot-bolt locking mechanism, allows for smooth and secure opening and closing. Enjoy peace of mind with minimal effort.
- Versatile Design: Ideal for both internal and external spaces, these doors adapt to various settings. Enhance your storefront by integrating unique in-fill panels or incorporating your brand's colours with a powder-coat finish. Choose performance glazing to meet environmental considerations.
Why Choose Dynasty 9100?
- Aesthetic Appeal: Create a statement shop-front that captivates customers and reinforces your brand identity.
- Durability: Robust aluminium frames ensure longevity, providing a lasting investment for your business.
- Professional Support: Benefit from our comprehensive door design assistance service, guiding you through the options to find the perfect solution. We offer installation services Australia-wide, ensuring a hassle-free experience.
Architectural and Designers specification
Please specify on your Drawings the following to ensure ease of Purchase and ensure the originality of the product.
Supply and Install DYNASTY 9100 Manufactured by ATLAS DOORS.
Dynasty 9100 (Right Angle Stack)
Work Excluded
The general contractor shall supply adequate wood or metal supports. Minimum structural capacity to support (145kg per linear metre of door).
Construction
Meeting stiles shall be interlocking extruded aluminium members (32mm x 73mm).Sections shall be extruded from aluminium and constructed in accordance with details shown on shop drawings. Should fixed panels be required they shall be of matching construction. Brush weather seal at floor optional.
Panels
Available in the following materials:
- 6.38mm Clear Laminated Glass
- 18ga. Perforated (51%) Visibility Panels
Note: Minimum panel width 600mm. Conditions apply.
Track
Track shall be heavy-duty extruded aluminium[ 38mm (h) x 36mm (w) – two tracks side by side and shall be surface mounted or recessed as required (specify).
Finish
All models are offered in our standard high quality clear anodised finish, or standard powder coat finishes.
Hardware
To be Dynamic’s heavy duty auto retractable cylinder locks on access panels. All other panels shall be secured with a conveniently located shootbolt system that will lock into a specially designed dust resistant floor socket.

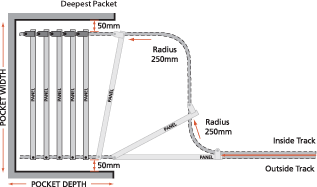

Layout
STACK WIDTH: Panel size plus 70mm
STACK DEPTH: 70mm per panel – minimum pocket depth 300mm
Example of a 914mm Panel (Nominal Size):
| PANELS | STACK | WIDTH STACK DEPTH |
|---|---|---|
| 3 | 984mm | 300mm min. |
| 7 | 984mm | 490mm |
| 10 | 984mm | 700mm |
- Egress available at position A only (leadership panel off wall, left or right)
- It is imperative that ceiling and floor are level.
- Stacks left and/or right off wall.
- Also available in bi-part stacking half left & half right.
Right Angle Stack (Max Height 3600mm)
